Here in our online store we are offering a few basic conical shapes you may be able to use. They are made from 18 gauge CRS for the heavy strength and weldability. Please review them if they may work for you.
The conical shape is the hardest shape to form and one of the easiest ones by metal spinning. The small end of the tool is a fixed size but the vertical height can be shortened or lengthened to a particular diameter depending on the tool. The small end can be cut away at most any point also to make a tapered cylinder from a spun cone. Most of our tools are made with a hole (typically 13/32″) in the small end but can be made without a hole if needed. Custom cones can be Aluminum, Copper, Brass, Steel or Stainless with others possible in many different thicknesses.
We specialize in custom parts. Some shapes such as conical cylinders and similar shapes can be spun starting with a tube using specially designed tooling.
We have in excess of 100 existing tapered tools which we may be able to provide you parts with no tooling cost to you. If you do need something special or not shown here we will be happy to provide you with a quote based on your needs. Please provide us with an RFQ with dimensions and material for a custom quote.
Product Details: Our conical shapes are all 18GA CRS, 13/32″ hole measured smallest diameter (nose) X widest diameter X vertical height, measurements are outside approximate. Contact us if exact sizes are required.
Contact us for a quote for quantity discounts above 25.

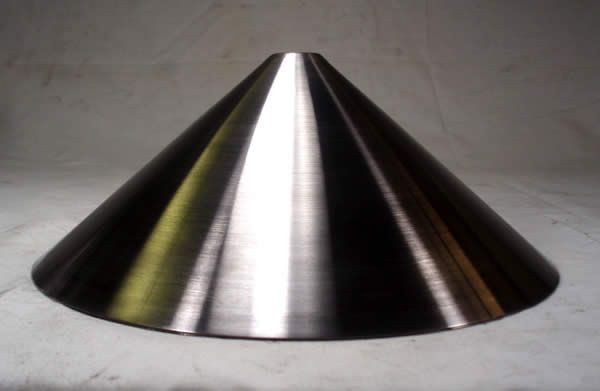

CONE 3/4-inch NOSE X 9 5/8-inch DIA X 3 7/8-inch HT 40deg (18 ga crs)
| Quantity | Price |
|---|---|
| 1 - 10 | $18.26 |
| 11 - 25 | $16.60 |
Price is discounted for quantity orders at checkout.

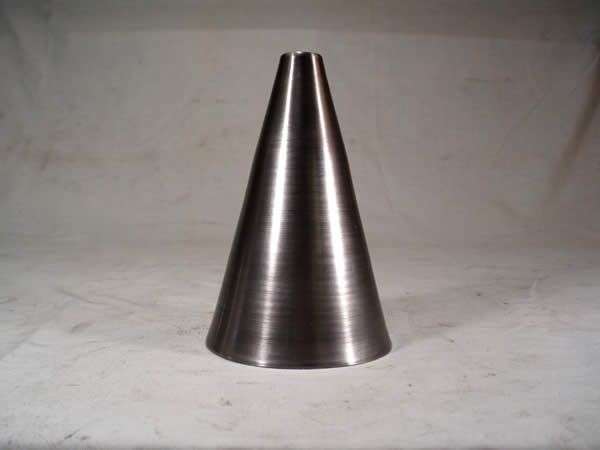

CONE 13/16-inch NOSE X 3 11/16-inch DIA X 5 5/8-inch HT 75deg (18 ga crs)
| Quantity | Price |
|---|---|
| 1 - 10 | $17.88 |
| 11 - 25 | $16.25 |
Price is discounted for quantity orders at checkout.
CONE 7/8-inch NOSE X 2 9/16-inch DIA X 3 1/2-inch HT 75deg (18 ga crs)
| Quantity | Price |
|---|---|
| 1 - 10 | $7.24 |
| 11 - 25 | $6.58 |
Price is discounted for quantity orders at checkout.

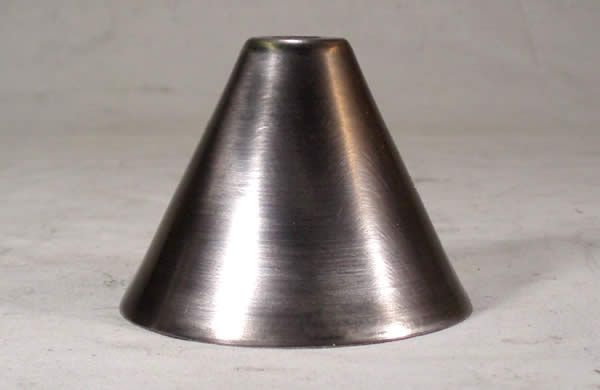

CONE 7/8-inch NOSE X 3 5/16-inch DIA X 2 5/8-inch HT 65deg (18 ga crs)
| Quantity | Price |
|---|---|
| 1 - 10 | $7.03 |
| 11 - 25 | $6.31 |
Price is discounted for quantity orders at checkout.

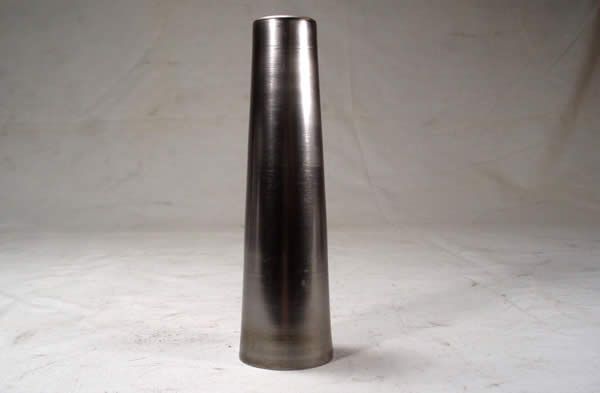

CONE 1-inch NOSE X 1 5/8-inch DIA X 5 3/4-inch HT 87deg (18 ga crs)
| Quantity | Price |
|---|---|
| 1 - 10 | $18.85 |
| 11 - 25 | $17.14 |
Price is discounted for quantity orders at checkout.

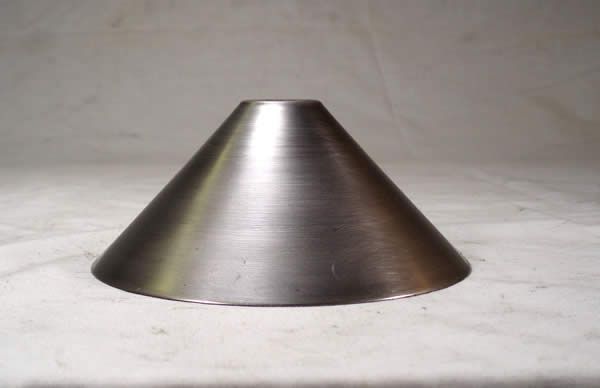

CONE 1-inch NOSE X 5 1/4-inch DIA X 2 1/4-inch HT 47deg (18 ga crs)
| Quantity | Price |
|---|---|
| 1 - 10 | $8.03 |
| 11 - 25 | $7.30 |
Price is discounted for quantity orders at checkout.

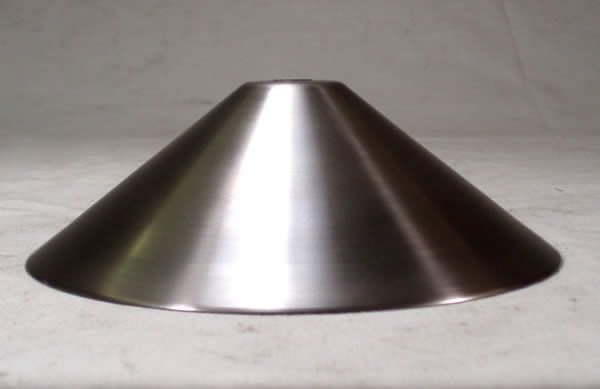

CONE 1-inch NOSE X 6-inch DIA X 2-inch HT 38deg (18 ga crs)
| Quantity | Price |
|---|---|
| 1 - 10 | $9.80 |
| 11 - 25 | $8.91 |
Price is discounted for quantity orders at checkout.

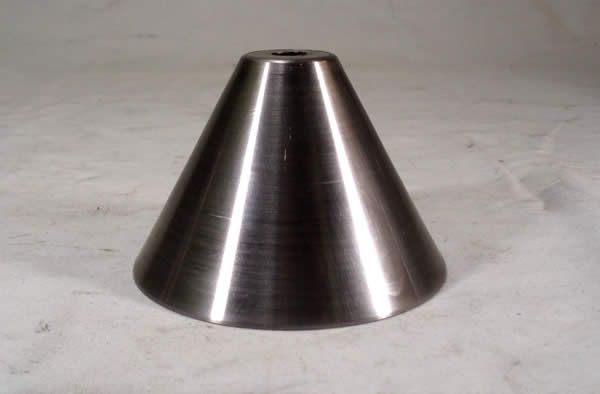

CONE 1 1/8-inch NOSE X 4-inch DIA X 2 3/4-inch HT 60deg (18 ga crs)
| Quantity | Price |
|---|---|
| 1 - 10 | $7.34 |
| 11 - 25 | $6.67 |
Price is discounted for quantity orders at checkout.

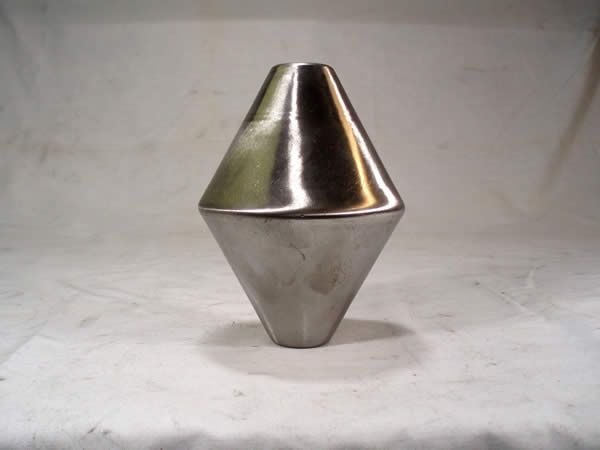

CONE 1 1/8-inch NOSE X 4-inch DIA X 2 3/4-inch HT 60deg-2 WELDED (18 ga crs)
| Quantity | Price |
|---|---|
| 1 - 10 | $31.39 |
| 11 - 25 | $28.54 |
Price is discounted for quantity orders at checkout.

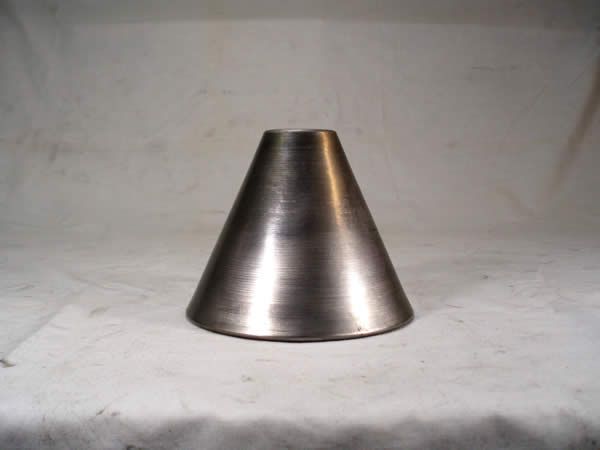

CONE 1 1/2-inch NOSE X 5-inch DIA X 4-inch HT 75deg (18 ga crs)
| Quantity | Price |
|---|---|
| 1 - 10 | $10.47 |
| 11 - 25 | $9.52 |
Price is discounted for quantity orders at checkout.

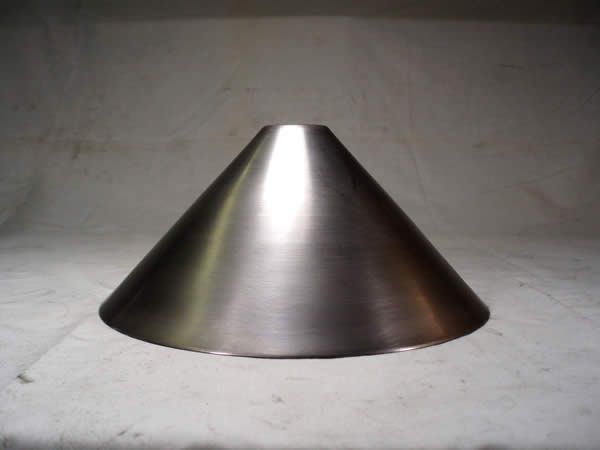

CONE 1 1/2-inch NOSE X 9 3/8-inch DIA X 4 5/16-inch HT 47deg (18 ga crs)
| Quantity | Price |
|---|---|
| 1 - 10 | $15.09 |
| 11 - 25 | $13.72 |
Price is discounted for quantity orders at checkout.

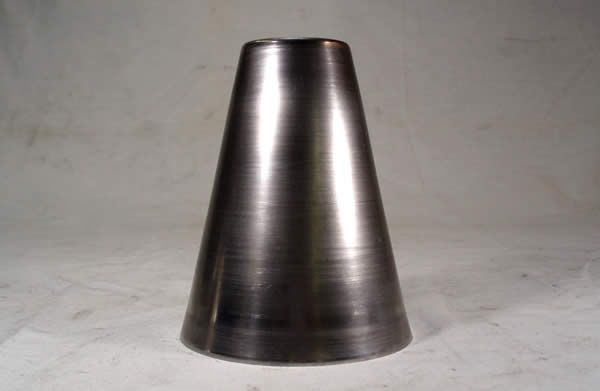

CONE 1 7/8-inch NOSE X 4-inch DIA X 5-inch HT 78deg (18 ga crs)
| Quantity | Price |
|---|---|
| 1 - 10 | $10.78 |
| 11 - 25 | $9.80 |
Price is discounted for quantity orders at checkout.

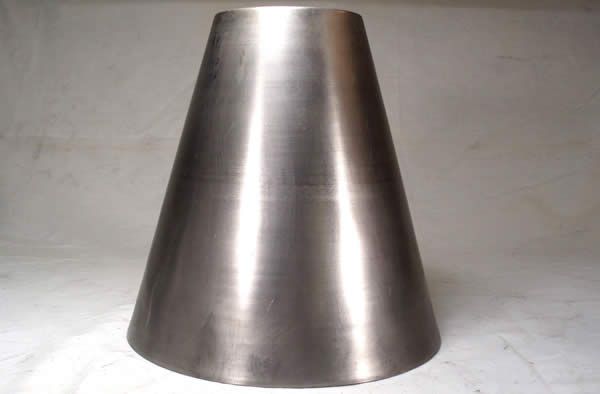

CONE 4 1/8-inch NOSE X 9-inch DIA X 9-inch HT 75deg (18 ga crs)
| Quantity | Price |
|---|---|
| 1 - 10 | $27.87 |
| 11 - 25 | $25.34 |
Price is discounted for quantity orders at checkout.
